Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: lfvision
  • Model Number: P6
  • Usage: Indoor
  • Tube Chip Color: Full Color
  • Display Function: Video / Advertising
  • Pixels: 6mm
  • Screen Dimension: 192mm x 192mm
  • Display Size: 192mm x 192mm
  • Brightness: 2500cd/m2
  • Scan Method: 1/8 Scan
  • Module density: 27777dots/m2
  • Power Supply: 5V/40A 5V/60A 5V80A
  • Pixel configuration: SMD 3535
  • Best viewing distance: 6m - 40m
  • Interface: HUB75
  • Cabinet Size: 576mm x 576mm (Support customized)
  • Warranty: 3 Years

Packaging & Delivery

Packaging Details Wooden case / Flight case
Delivery Time Shipped in 8-12 days after payment

china high quality p6 stage background high resolution led displays /indoor p6 HD rental  video wall



Product Description







The specifications of modulesParameter

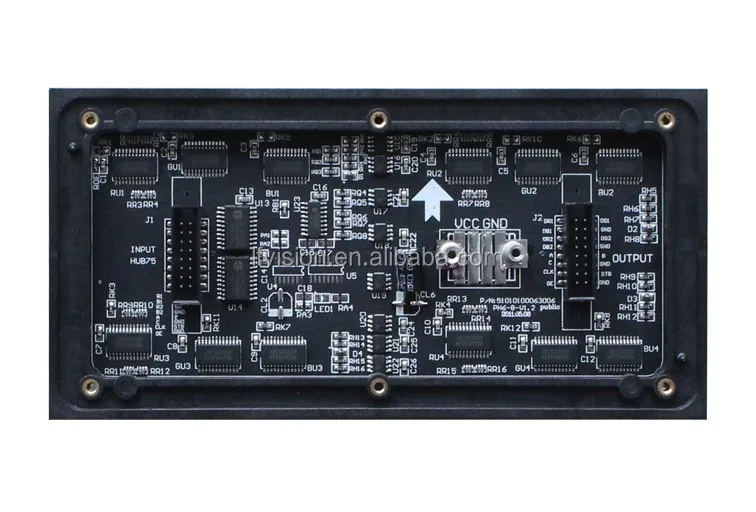

Product ModuleP6 Indoor led module
Module size 192 x192 mm
Module resolution 32 x 32 dots
Pixel pitch 6 mm
Pixel density 27777 dots/sq.m
LED typeSMD 3in1
Driving mode1/8 scan
Led Lamps3535
Frame rate 65Hz/Second
Refresh rate ≥3200HZ
Color temperature6500K
Grey scale16384
Brightness in White Color (CD/):2500 cd/sq.m
Contrast ratio ≥4000:1
Life time≥100000 hours
Operating temperature sub zero 10ºC~55ºC
Stock temperature sub zero 10ºC~55ºC
Operating humidity 10%-70%RH
Average power consumption≤800W/sq.m
Viewing Angle 100(Horizontal),100(Vertical)
Best Viewing Distance 6m-40m
Input Voltage 220V/110V, 50Hz/60Hz
Output Voltage 5V/40A, 5V60A, 5V80A
Operating system XP, WIN7, WIN8,VISTA
Control Mode Synchronization
Input Signal MPG/MPEG/MPV/MPA/AVI/
 VCD/SWF/RM/RA/RMJ/ASF/Composite,etc
      product features:




Features

1.  Energy saving design, good cooling system, high-definition, outstanding reliability and complete function.


2. No color difference, concentrating well, good viewing angle.


3. Ultra-high refresh rate, support the camera recorder to ensure a clear picture quality.


4.  Quick editing of assembly, disassembly system, saving unloading time.

Advantage

1 . Flexible mode of operation: any layout mode by the user


2 . Wide Angle: 160 ° visual Angle, suitable for wide distribution and high level gap between the larger environment


3 . Three anti-protection: anti-corrosion, anti-static, moisture, shock, greatly improving the reliability of the product.



Packaging & Shipping

1 . Shipping by sea, by air, EMS; UPS; DHL; FEDEX; TNT etc.


 2 . Flight Case ; Wooden case ; Carton Case









Trade Terms


1. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery
2. Shipping port: Shenzhen
3. Warranty time: 2-3 years
4. Delivery time: 5-15 working days after received the full payment



Our Services

1. After-sales service:

1) Service principles: Response in time, solve problems as soon as possible and ensure the use.
2) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
3) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
4) Under normal use and storage, Our Company will be responsible for the equipments.


2. Pre-sales service:

1) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made, we will discuss with client to find solutions.
2) Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection

1

FAQ

1 . What's the difference of DIP(1R1G1B) and DIP(3 in 1) ?
 DIP(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3 led chips in one LED Lamp; Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.

2 . Can you assign engineer to our site to guide the installation if we require?

Yes. We have qualified and experienced engineers who are ready to service for you.

3 . How about your warranty and after-sale policy?

Three years warranty, or longer if required. We provide 24 hour phone answering service and real-time remote control service if you have any problem with our led screen.
