Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: lfvision
  • Model Number: P7.62
  • Usage: Indoor
  • Tube Chip Color: Full Color
  • Display Function: Video / Advertising
  • Pixels: 7.62mm
  • Screen Dimension: 244mm x 244mm
  • Display Size: 244mm x 244mm
  • Module density: 17222dots/m2
  • Brightness: ≥ 1700cd/m2
  • Scan: 1/8 Scan
  • Power Supply: 5V/40A 5V/60A 5V80A
  • Pixel configuration: SMD 1R1G1B
  • Best viewing distance: 8m ~ 50m
  • Interface: HUB75
  • Optimal viewing angle: 160°(W) 120°(H)
  • Warranty: 3 Years

Packaging & Delivery

Packaging Details Wooden case / Flight case
Delivery Time Shipped in 8-12 days after payment

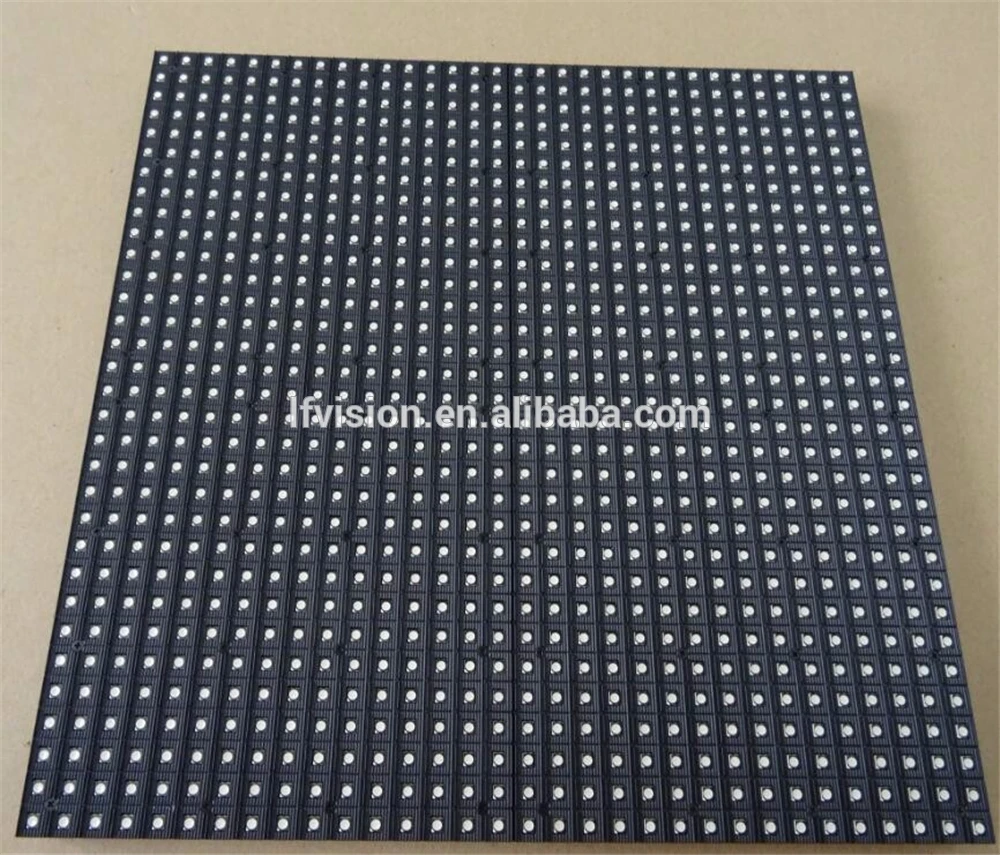

china high quality p7.62 stage background high resolution led displays /indoor p7.62 HD fixed video wall



Product Description







ItemParameter
Product model P7.62-8S
Module size244mm*244mm
 Pixel pitch 7.62mm
 Pixel density  17222dots/m2
Pixel configuration smd 3in1
 Module resolution32dots(W)*16dots(H)
Maximum power consumption150W
 Module thickness15mm
Module weight0.45kg
Driving methodConstant current driving
Scan mode1/8 scan
Interface typeHUB 75
Brightness  ≥ 1700cd/m2

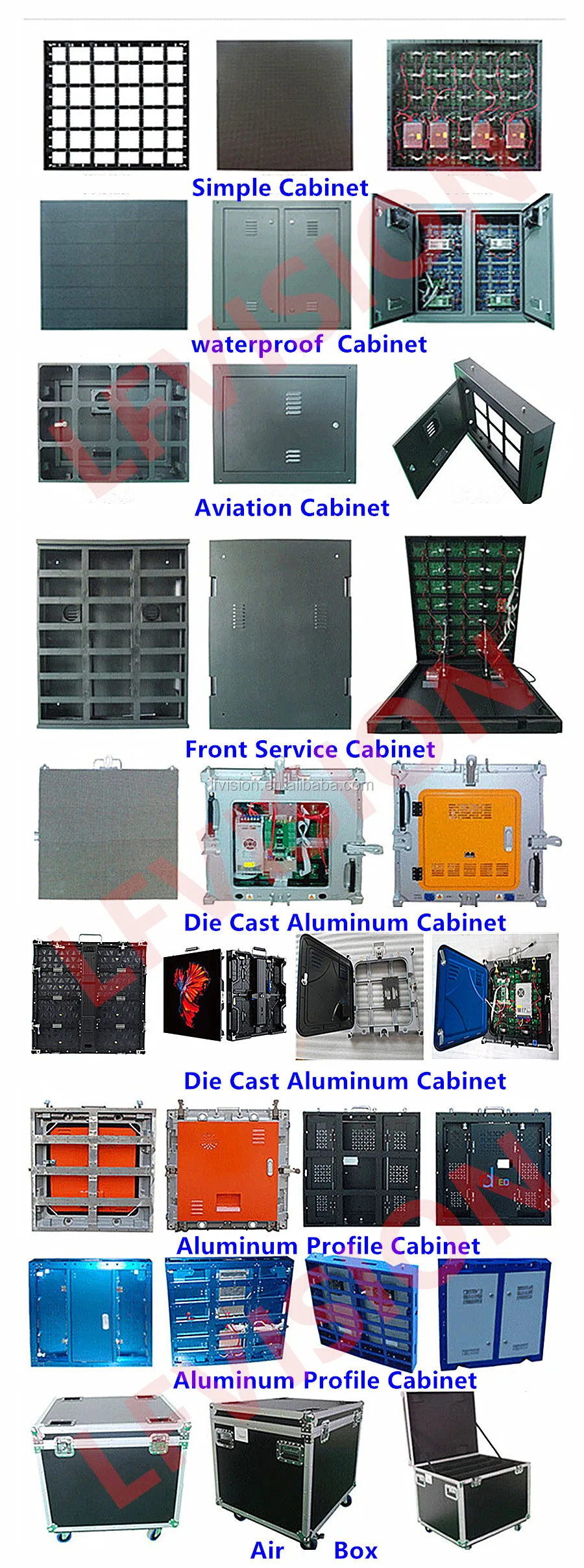

The specifications of cabinet
Cabinet size976mm*976mm
 Module quantity16pcs
 Power supply5V/40A 5V/60A 5V80A
Cabinet resolution  128*128dots
 Optimal viewing distance8m ~ 50m
Optimal viewing angle160°(W) 120°(H)
  System operating humility10%-95%
The specifications of power supply
Operating voltageAC220V±10%
 Average power consumption280W/ m2
 Maximum power consumption≤ 400W/ m2
Current ≤20mA(single LED)
The specifications of control system
ComputerPentium4 or above
Operating system WIN98/2000/NT/XP
Control modelSynchronization control
The specifications of the main technical parameters
 Driving deviceConstant current driving
 Refresh rate≥400Hz
 Grey scaleRGB each 256 grade, can display 16.7M colors)
MTBF≥9000hours
Power switchAutomatic switch
Display mode800*600/1024*768
        product features:










Features

1.  Energy saving design, good cooling system, high-definition, outstanding reliability and complete function.


2. No color difference, concentrating well, good viewing angle.


3. Ultra-high refresh rate, support the camera recorder to ensure a clear picture quality.


4.  Quick editing of assembly, disassembly system, saving unloading time.

Advantage



1 . Flexible mode of operation: any layout mode by the user



2 . Wide Angle: 160 ° visual Angle, suitable for wide distribution and high level gap between the larger environment





3 . Three anti-protection: anti-corrosion, anti-static, moisture, shock, greatly improving the reliability of the product.

Packaging & Shipping

1 . Shipping by sea, by air, EMS; UPS; DHL; FEDEX; TNT etc.


 2 . Flight Case ; Wooden case ; Carton Case







Trade Terms


1. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery
2. Shipping port: Shenzhen
3. Warranty time: 2-3 years
4. Delivery time: 5-15 working days after received the full payment



Our Services

1. After-sales service:

1) Service principles: Response in time, solve problems as soon as possible and ensure the use.
2) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
3) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
4) Under normal use and storage, Our Company will be responsible for the equipments.


2. Pre-sales service:

1) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made, we will discuss with client to find solutions.
2) Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection

FAQ

1 . What's the difference of DIP(1R1G1B) and DIP(3 in 1) ?
 DIP(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3 led chips in one LED Lamp; Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.

2 . Can you assign engineer to our site to guide the installation if we require?

Yes. We have qualified and experienced engineers who are ready to service for you.

3 . How about your warranty and after-sale policy?

Three years warranty, or longer if required. We provide 24 hour phone answering service and real-time remote control service if you have any problem with our led screen.
